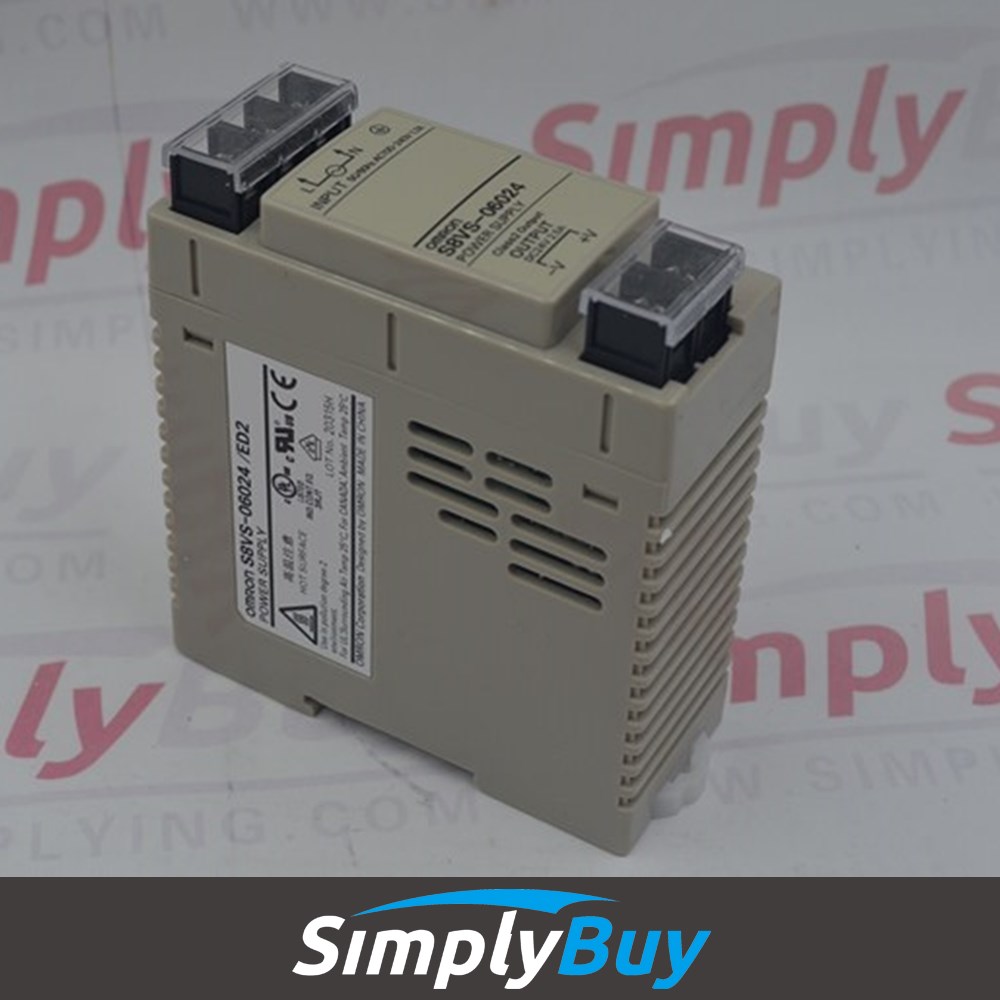

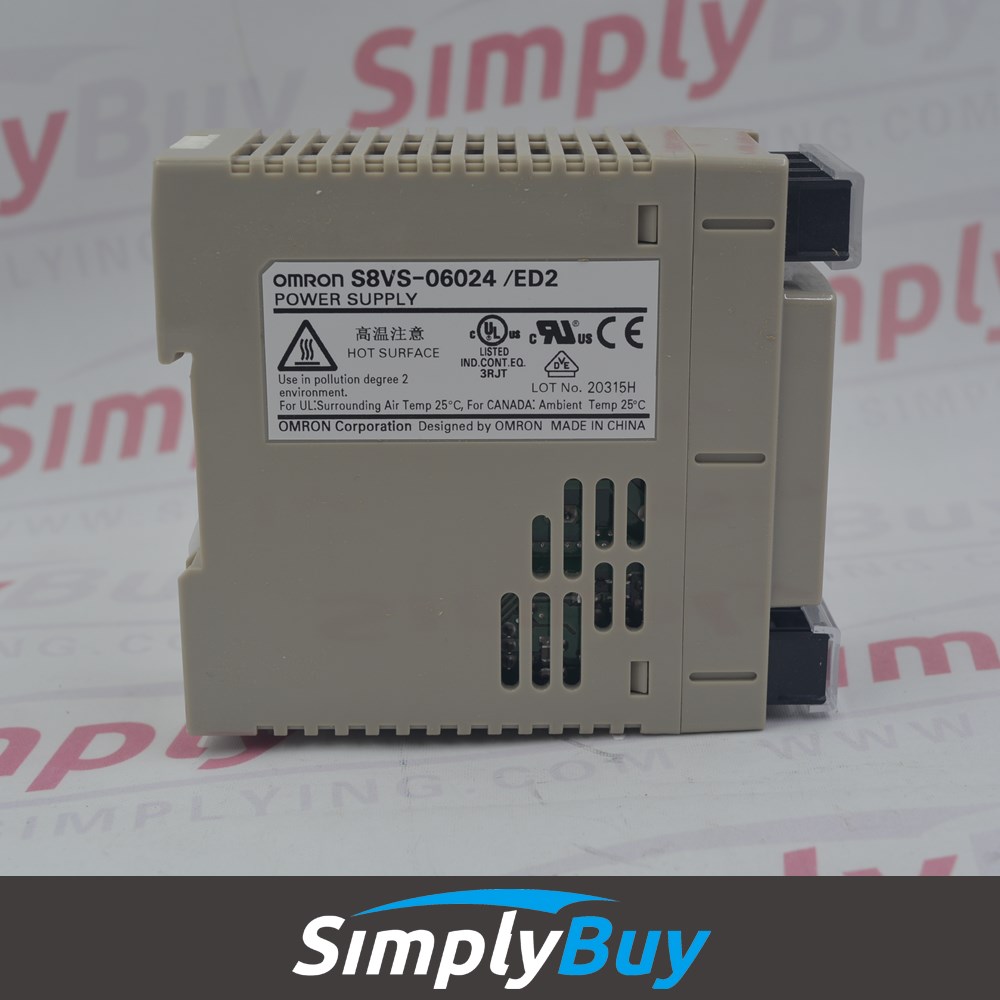

S8VS-06024

  • Part Number:S8VS-06024
  • Manufactuer:Omron
  • Products:Power Supply
  • Model:S8VS Models
  • Series:Switch Mode Power Supply
  • Description:Covered type, Natural air-cooling, Input: 80 to 370 VDC 100 to 240 VAC, Power ratings: 60 W, Output: 24 VDC
  • Condition:Original new in box
  • Lead time:1 weeks
  • Price:$0.00 Email LinkedIn Google+ Facebook Twitter Addthis

Previous : 1606-XL960E-3S

Next : S8VS-24024

  • Description
  • Specification
  • Shippment&payment
  • Downloads

S8VS-06024

Covered type, Natural air-cooling, Input: 80 to 370 VDC 100 to 240 VAC, Power ratings: 60 W, Output: 24 VDC

Power rating 60 W
Rated input voltage 100 to 240 VAC
Output voltage 24 VDC
Heat radiation Natural air-cooling
Construction Covered type
Terminal type Screw terminal
Mounting type DIN Rail mounting type

S8VS-06024


Power rating 60 W
Efficiency 84% TYP.(At 100 VAC input)
83% TYP.(At 200 VAC input)
Rated input voltage 100 to 240 VAC
Allowable input voltage variable range 85 to 264 VAC
80 to 370 VDC
Note at DC input The range for compliance with EC Directives and safety standards (UL, EN, etc.) is 100 to 240 VAC (85 to 264 VAC).
Frequency 50/60 Hz(47 to 450 Hz Single-phase)
Rated input curren 1.3A TYP. (At 100 VAC input)
0.68A TYP. (At 200 VAC input)
Leakage current 0.5 mA Max. (At 100 VAC input)
1.0 mA Max. (At 200 VAC input)
Inrush current 14 A TYP. (At 100 VAC input (For cold start at 25 CEL))
28 A TYP. (At 200 VAC input (For cold start at 25 CEL))
Output voltage 24 VDC
Output voltage variable range -10 to +15 % (With V. ADJ)
(The output voltage may increase beyond the allowable voltage range (up to +15% of the rated voltage) depending on the operation of the output voltage adjuster (V.ADJ). When adjusting the output voltage, check the output voltage of the Power Supply and be sure that the load is not damaged.)
Ripple 2%(p-p) Max. (Under the rated I/O conditions.)
70mV Max. (Under the rated I/O conditions.)
Static input variation influence 0.5% Max. At 85 to 264 VAC input, 100% load
Static load variation influence 1.5% Max. At rated input, 0 to 100% load
Ambient temperature variation influence 0.05 %/CEL Max.
Rated output current 2.5 A
Start up time 620 ms TYP. (100 VAC input)
400 ms TYP. (200 VAC input)
Hold time 34ms TYP. (100 VAC input)
158ms TYP. (200 VAC input)
Overload protection 105% to 160% of the rated output current
Inverted L voltage drop, Intermittent operation, Automatic reset
Overvoltage protection Operated at 130% Min. of the rated output voltage, Shut-off
Resetting: Reset the power by turning it back (OFF time: at least 3 min)
Overheat protection No
Maintenance forecast monitor output No
Total run time monitor output No
Undervoltage alarm output No
Power failure alarm output No
Parallel operation No (However, backup operation is possible; external diodes required.)
N+1 redundant system -
Series operation Yes (Up to 2 Power Supplies with external diode)
Remote sensing function No
Dielectric strength Between all inputs and all outputs/alarm outputs: 3 kVAC for 1 min (Detection current: 20 mA)
Between all inputs and PE terminals: 2 kVAC for 1 min (Detection current: 20 mA)
Between all outputs/alarm outputs and all PE terminals: 1 kVAC for 1 min (Detection current: 30 mA)
Between all outputs and all alarm outputs: 500 VAC for 1 min (Detection current: 20 mA)
Insulation resistance Between all outputs and all inputs/ PE terminals: 100 MOhm Min. (at 500 VDC)
Vibration resistance 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours
Shock resistance 150 m/s**2, in each 6 directions 3 times
Output indicator Yes (color: green)
Heat radiation Natural air-cooling
Construction Covered type
Terminal type Screw terminal
Mounting type DIN Rail mounting type
Weight (Main) Approx. 330 g

Do not use the Inverter output for the Power Supply. Inverters with an output frequency of 50/60 Hz are available, but the rise in the internal temperature of the Power Supply may result in ignition or burning.



 Part Number  S8VS-06024
 Manufactuer  Omron
 Products  Power Supply
 Model  S8VS Models
 Series  Switch Mode Power Supply
 Description  Covered type, Natural air-cooling, Input: 80 to 370 VDC 100 to 240 VAC, Power ratings: 60 W, Output: 24 VDC
 Condition  Original new in box
 Lead time  1 weeks
