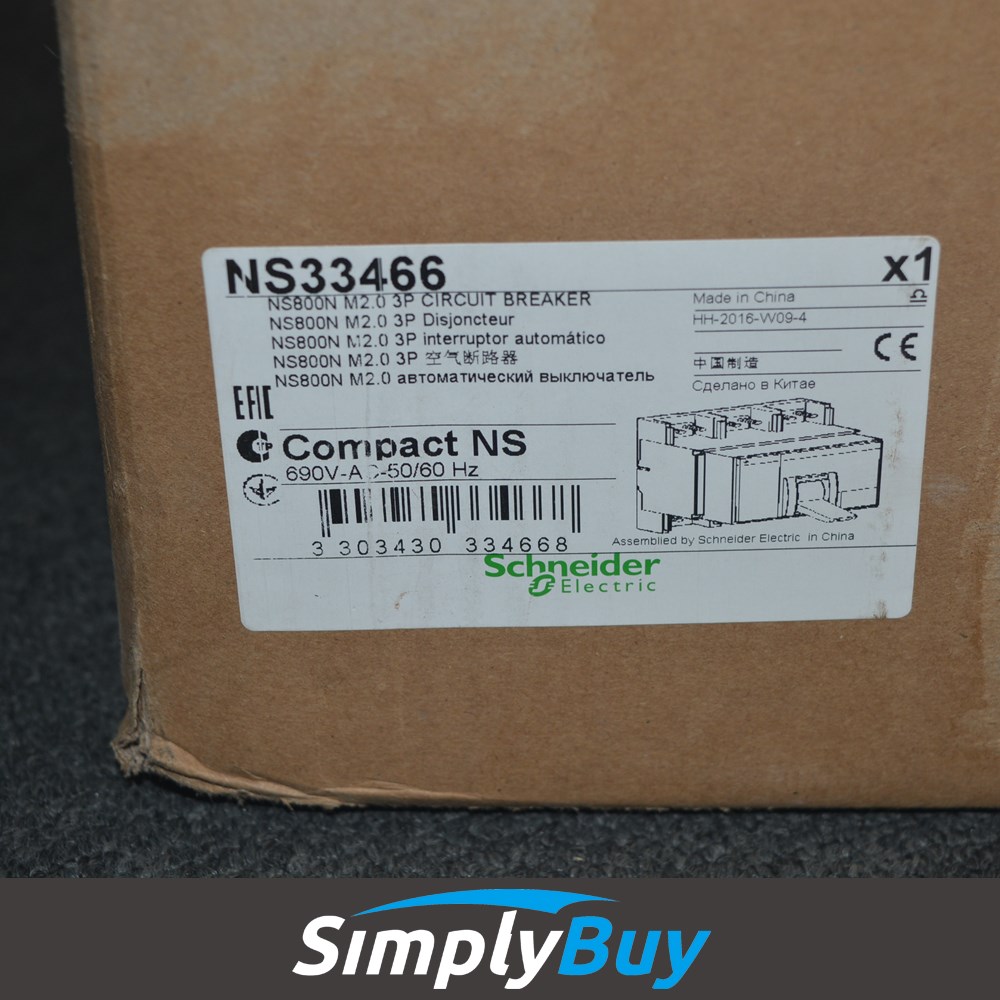

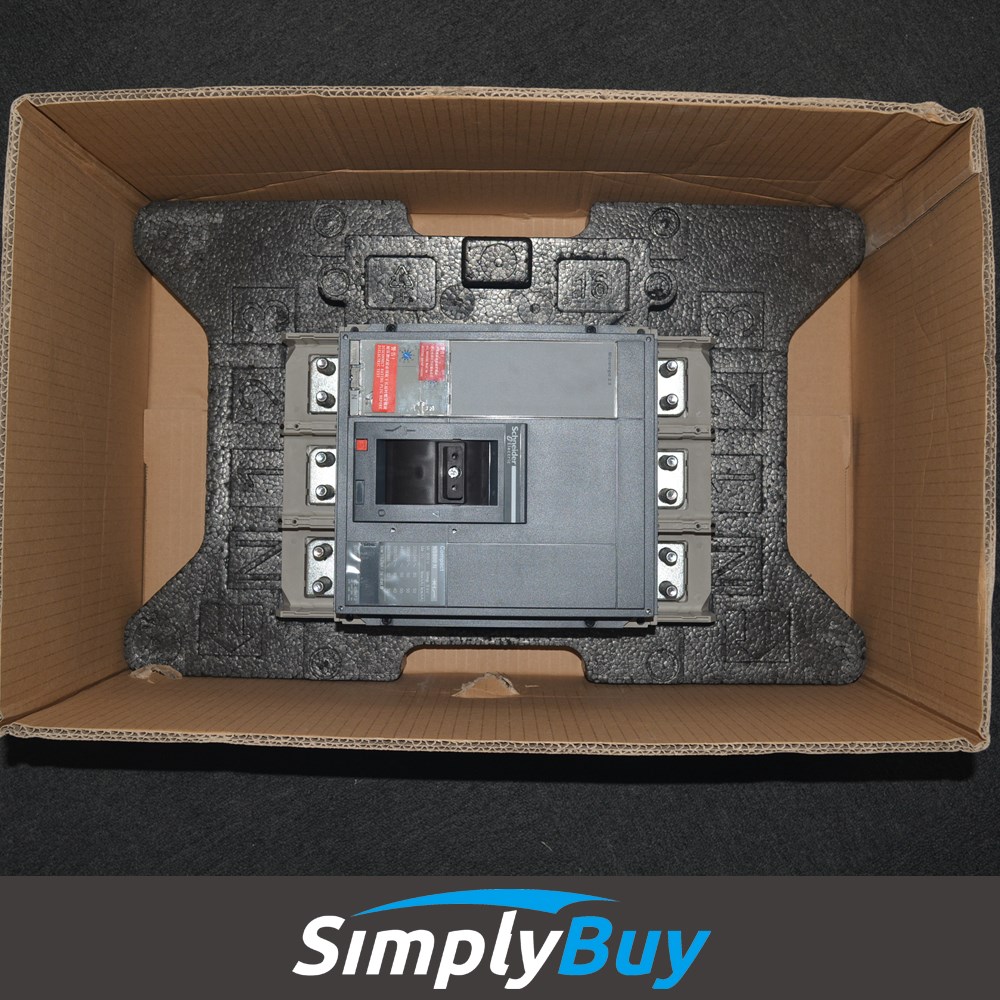

circuit breaker Compact NS800N - Micrologic 2.0 - 800 A - 3 poles 3t
| Characteristics | |
| Main | |
| Range | Compact |
| Range of product | NS630b...1600 |
| Product or component type | Circuit breaker |
| Device short name | Compact NS800N |
| Device application | Distribution |
| Poles description | 3P |
| Protected poles description | 3t |
| Network type | AC |
| Breaking capacity code | N |
| Suitability for isolation | Yes conforming to IEC 60947-2 |
| Utilisation category | Category B |
| Trip unit name | Micrologic 2.0 |
| Trip unit technology | Electronic |
| Trip unit rating | 800 A ( 50 °C ) |
| Complementary | |
| Network frequency | 50/60 Hz |
| Control type | Rotary handle |
| Toggle | |
| Mounting mode | Fixed |
| Mounting support | Backplate |
| Rail | |
| Upside connection | Front |
| Downside connection | Front |
| (In) rated current up to 65 °C | 800 A ( 50 °C ) |
| [Ui] rated insulation voltage | 800 V AC 50/60 Hz conforming to IEC 60947-2 |
| [Uimp] rated impulse withstand voltage | 8 kV conforming to IEC 60947-2 |
| [Ue] rated operational voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Circuit breaker CT rating | 800 A |
| Breaking capacity | 40 kA Icu at 525 V AC 50/60 Hz conforming to IEC 60947-2 |
| 40 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 50 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 50 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 50 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 30 kA Icu at 660/690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| 50 kA at 240 V AC 60 Hz conforming to NEMA AB1 HIC | |
| 35 kA at 480 V AC 60 Hz conforming to NEMA AB1 HIC | |
| 25 kA at 600 V AC 60 Hz conforming to NEMA AB1 HIC | |
| [Ics] rated service breaking capacity | Ics 50 kA 440 V AC 50/60 Hz conforming to IEC 60947-2 |
| Ics 50 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Ics 50 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Ics 40 kA 500/525 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Ics 30 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2 | |
| Mechanical durability | 10000 cycles |
| Local signalling | Positive contact indication |
| [Icw] rated short-time withstand current | 19.2 kA |
| Trip unit protection functions | Basic protection |
| Protection type | Instantaneous short-circuit protection |
| Overload protection (long time) | |
| Long time pick-up adjstment type Ir | Adjustable |
| Long time pick-up adjustment range | 0.4...1 x In |
| Long time delay adjustment type | Adjustable 9 settings |
| [tr] long-time delay adjustment | 12.5...600 s 1.5 x Ir |
| 0.7...24 s 6 x Ir | |
| 0.7...16.6 s 7.2 x Ir | |
| Thermal memory | 20 mn |
| Instantaneous pick-up adjustment type Ii | Adjustable |
| Instantaneous pick-up adjustment range | 1.5...10 x Ir |
| Integral instant protection | 40 kA |
| Height | 327 mm |
| Width | 210 mm |
| Depth | 147 mm |
| Environment | |
| Standards | IEC 60947-2 |
| NEMA AB1 HIC | |
| Product certifications | ASEFA |
| ASTA | |
| IP degree of protection | IP40 conforming to IEC 60529 |
| IK degree of protection | IK07 conforming to EN 50102 |
| Pollution degree | 3 conforming to IEC 60947 |
| Ambient air temperature for operation | -25...70 °C |
| Ambient air temperature for storage | -50...85 °C |
| Part Number | NS33466 |
| Manufactuer | Schneider |
| Products | Circuit Breakers |
| Model | Circuit breaker Compact NS800N |
| Series | Compact NS N |
| Description | circuit breaker Compact NS800N - Micrologic 2.0 - 800 A - 3 poles 3t |
| Condition | Schneider original new |
| Lead time | 2 week |
