Circuit Breakers

Home » Product » Circuit Breakers

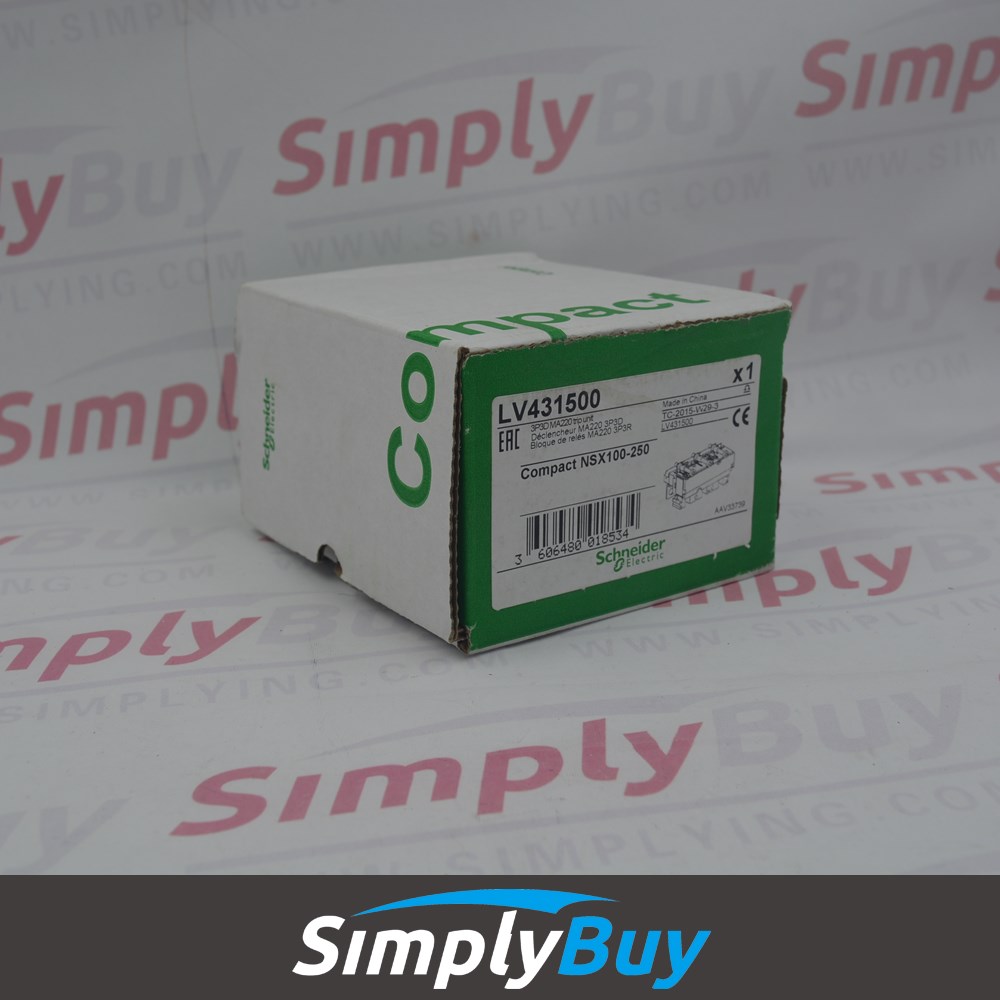

LV431500 Magnetic MA220

  • Part Number:LV431500
  • Manufactuer:Schneider
  • Products:Circuit Breakers
  • Model:MCCB Control unit
  • Series:Merlin Gerin Compact NSX Magnetic MA220
  • Description:trip unit - MA - 220 A - 3 poles 3d
  • Condition:Schneider original new
  • Lead time:1 week
  • Price:$0.00 Email LinkedIn Google+ Facebook Twitter Addthis
  • Description
  • Specification
  • Shippment&payment
  • Downloads

LV431500
trip unit - MA - 220 A - 3 poles 3d

Characteristics
Main
Range of product NSX100...250
Product or component type Trip unit
Circuit breaker application Motor protection
Poles description 3P
Protected poles description 3t
Network type AC
Network frequency 50/60 Hz
Trip unit name MA
Trip unit technology Magnetic
Trip unit protection functions
Trip unit rating 220 A ( 65 °C )
Protection type Short-circuit protection (magnetic)
Complementary
Mounting mode Fixed
[Ue] rated operational voltage 690 V AC 50/60 Hz
Short-time pick-up adjustment type Isd Adjustable
[Isd] short-time pick-up adjustment range 9...14 x In
Environment
Standards EN 60947-2
IEC 60947-2
NEMA AB1
UL 508
Product certifications CSA
UL
IP degree of protection IP40 conforming to IEC 60529
Pollution degree 3 conforming to IEC 60947-1
Ambient air temperature for operation -25...70 °C
Ambient air temperature for storage -50...85 °C

Instantaneous pick-up adjustment type Ii Adjustable
Instantaneous pick-up adjustment range 1.5...11 x In Compact NSX630
Ground-fault time delay adjustment type -tg Adjustable
Ground-fault pick-up adjustment type Adjustable
[tg] ground-fault time delay adjustment range 0...0.4 s
[Ig] ground-fault pick-up adjustment range 0.2...1 x In
Zone selective interlocking ZSI With
Communication of data Demand current and power
Energy metering
Instantaneous and demand values
Maintenance indicators
Maximeters/minimeters
Power quality
Protection and alarm settings
Time-stamped histories and event tables
Display type LCD display
Type of measurement Ammeter
Electrical data recording Maintenance indicators
Environment
Standards EN 60947-2
IEC 60947-2
NEMA AB1
UL 508
Product certifications CSA
UL
IP degree of protection IP40 conforming to IEC 60529
Pollution degree 3 conforming to IEC 60947-1
Ambient air temperature for operation -25...70 °C
Ambient air temperature for storage -40...85 °C


 Part Number  LV431500
 Manufactuer  Schneider
 Products  Circuit Breakers
 Model  MCCB Control unit
 Series  Merlin Gerin Compact NSX Magnetic MA220
 Description  trip unit - MA - 220 A - 3 poles 3d
 Condition  Schneider original new
 Lead time  1 week

Shipping Policy

Most orders less than 70KG (150 lbs). will be shipped via Fedex ,DHL  UPS,TNT .Our shipment account have the best discount price for express to Worldwide.

All bulky and overweight items  we will advise be shipped by Air or by Sea . Once you place order , we will come out the shipment cost for you to confirm.

If you wish to have items shipped on your account or your forwarder, you must provide all account information and instructions at the time of sale. Packaging and handling costs may still apply.

We can accommodate shipments on just about any carrier, and we ship worldwide any corner .



Shipping with SimplyBuy

• Drop shipping available

• Overnight shipping available on most we stock items

• Factory Original new Package covered with SimplyBuy protection

• Fast delivery for emergency relief



Payment

We mostly accept T/T wire transfer ,our bank account accept USD,EUR,CAD,GBP, AUD, JPY,RUB fast speed without bank fee.

We accepted methods of credit card including Visa, MasterCard, American Express (AMEX), Discover .

We accepted Paypal and Escrow .

We accepted L/C Letter Of Credit - $300.00 fee (MOQ of $10k required) .
