Moulded case breaker

Home » Product » Circuit Breakers » Moulded case breaker

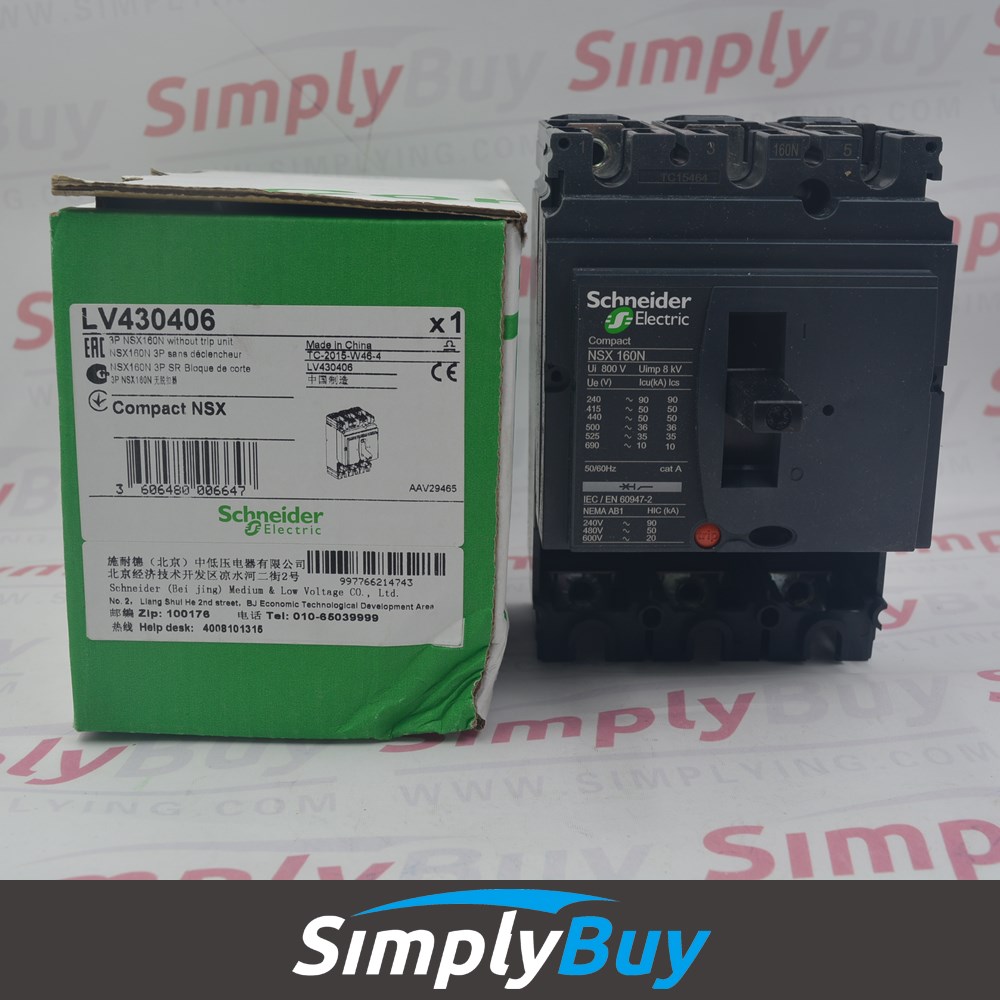

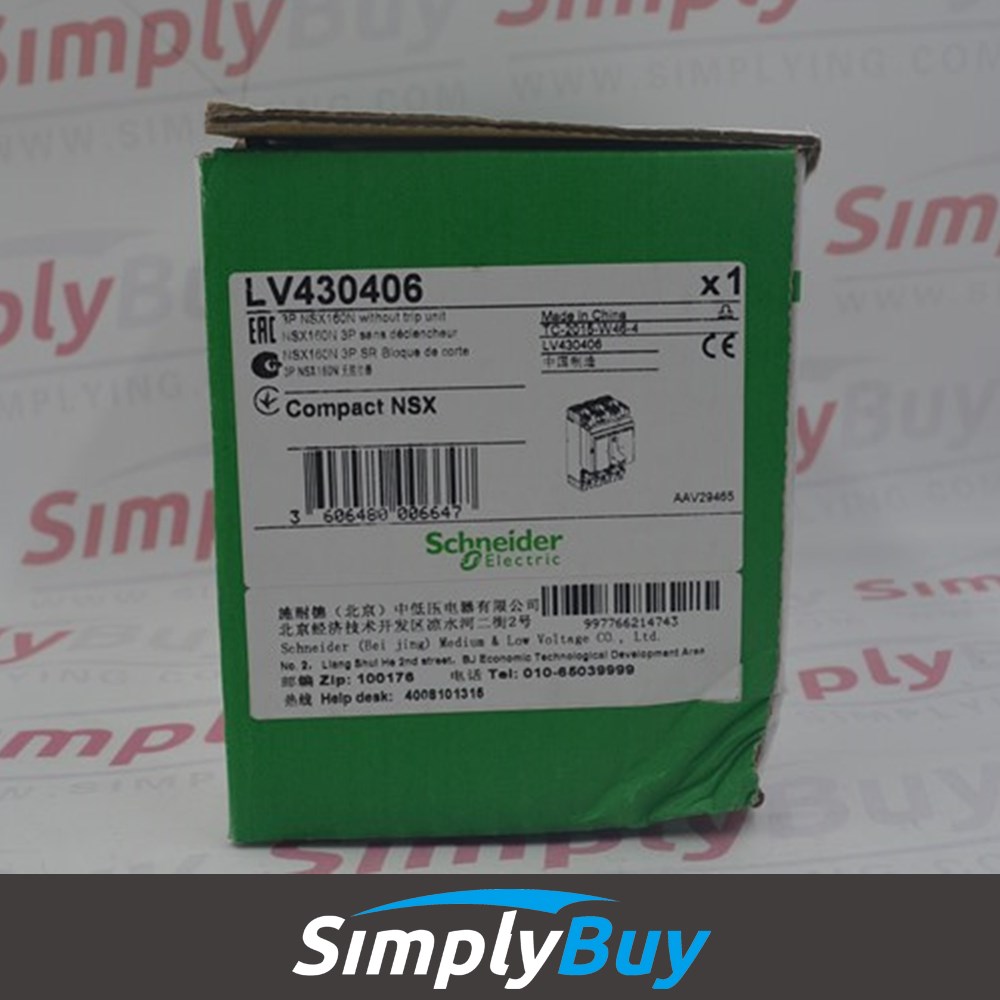

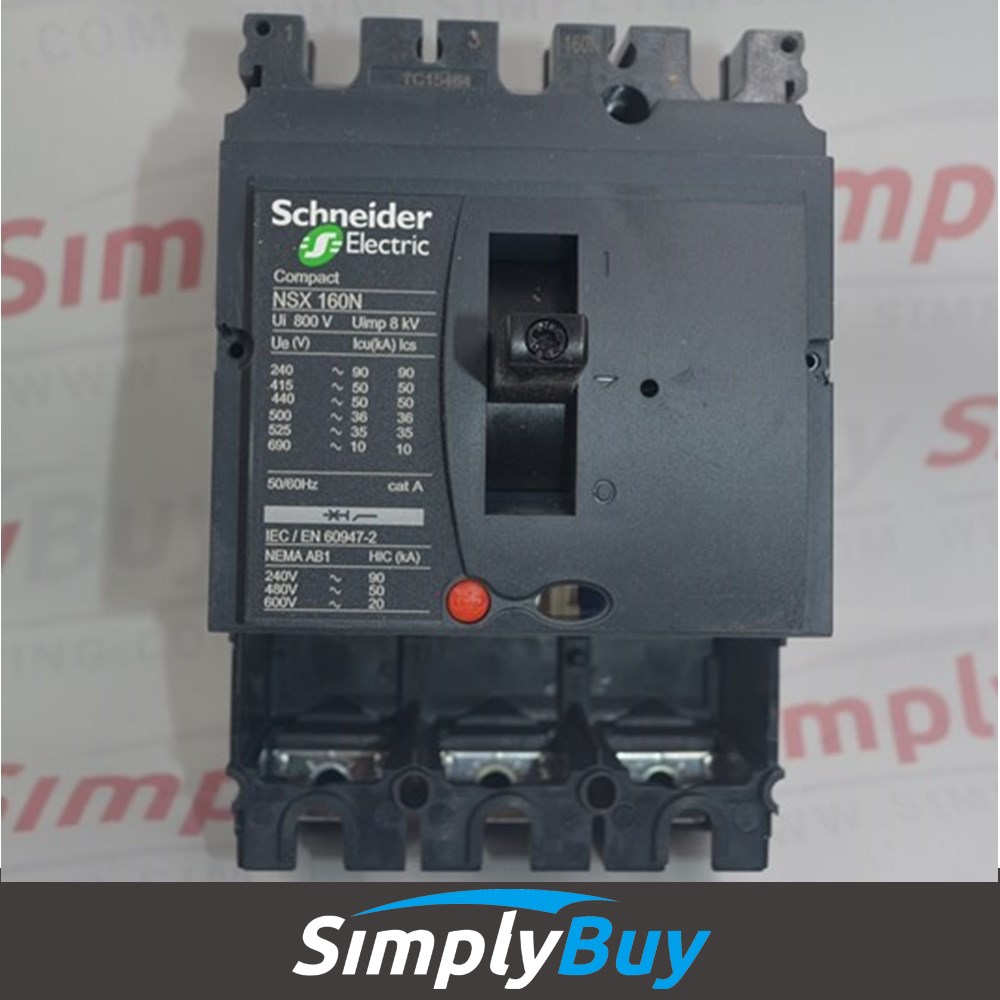

LV430406 NSX160N

  • Part Number:LV430406
  • Manufactuer:Schneider
  • Products:Moulded case breaker
  • Model:NSX MCCB
  • Series:Merlin Gerin Compact NSX
  • Description:circuit breaker Compact NSX160N - 160 A - 3 poles - without trip unit
  • Condition:Schneider original new
  • Lead time:1 week
  • Price:$0.00 Email LinkedIn Google+ Facebook Twitter Addthis
  • Description
  • Specification
  • Shippment&payment
  • Downloads
LV430406
circuit breaker Compact NSX160N - 160 A - 3 poles - without trip unit
Characteristics
Main
Range of product NSX100...250
Product or component type Basic frame
Device short name Compact NSX160N
Circuit breaker name Compact NSX160N
Poles description 3P
Network type AC
Network frequency 50/60 Hz
[In] rated current 160 A ( 40 °C )
[Ui] rated insulation voltage 800 V AC 50/60 Hz conforming to IEC 60947-2
[Uimp] rated impulse withstand voltage 8 kV conforming to IEC 60947-2
[Ue] rated operational voltage 690 V AC 50/60 Hz conforming to IEC 60947-2
Breaking capacity code
Breaking capacity Icu 90 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Icu 50 kA at 440 V AC 50/60 Hz conforming to IEC 60947-2
Icu 50 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Icu 36 kA at 500 V AC 50/60 Hz conforming to IEC 60947-2
90 kA at 240 V AC 50/60 Hz conforming to NEMA AB1
50 kA at 480 V AC 50/60 Hz conforming to UL 508
50 kA at 480 V AC 50/60 Hz conforming to NEMA AB1
20 kA at 600 V AC 50/60 Hz conforming to NEMA AB1
Icu 35 kA at 525 V AC 50/60 Hz conforming to IEC 60947-2
Icu 10 kA at 660/690 V AC 50/60 Hz conforming to IEC 60947-2
85 kA at 240 V AC 50/60 Hz conforming to UL 508
10 kA at 600 V AC 50/60 Hz conforming to UL 508
[Ics] rated service breaking capacity Ics 90 kA 220/240 V AC 50/60 Hz conforming to IEC 60947-2
Ics 50 kA 440 V AC 50/60 Hz conforming to IEC 60947-2
Ics 50 kA 380/415 V AC 50/60 Hz conforming to IEC 60947-2
Ics 36 kA 500 V AC 50/60 Hz conforming to IEC 60947-2
Ics 35 kA 525 V AC 50/60 Hz conforming to IEC 60947-2
Ics 10 kA 660/690 V AC 50/60 Hz conforming to IEC 60947-2
Suitability for isolation Yes conforming to IEC 60947-2
Yes conforming to EN 60947-2
Utilisation category Category A
Pollution degree 3 conforming to IEC 60947-1
Complementary
Control type Toggle
Mounting mode Fixed
Mounting support Backplate
Upside connection Front
Downside connection Front
Mechanical durability 40000 cycles conforming to IEC 60947-2
Electrical durability 7500 cycles 690 V AC 50/60 Hz In conforming to IEC 60947-2
20000 cycles 440 V AC 50/60 Hz In conforming to IEC 60947-2
15000 cycles 690 V AC 50/60 Hz In/2 conforming to IEC 60947-2
10000 cycles 440 V AC 50/60 Hz In/2 conforming to IEC 60947-2
Connection pitch 35 mm
Height 161 mm
Width 105 mm
Depth 86 mm
Environment
Standards EN 60947-2
IEC 60947-2
NEMA AB1
UL 508
Product certifications CSA
UL
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -35...70 °C
Ambient air temperature for storage -55...85 °C
Short-time delay adjustment type Fixed
Height 161 mm
Width 105 mm
Depth 86 mm
Product weight 2.2 kg
Environment
Electrical shock protection class Class II
Standards EN 60947-2
IEC 60947-2
NEMA AB1
UL 508
Product certifications CSA
UL
IP degree of protection IP40 conforming to IEC 60529
IK degree of protection IK07 conforming to IEC 62262
Ambient air temperature for operation -35...70 °C
Ambient air temperature for storage -55...85 °C



 Part Number  LV430406
 Manufactuer  Schneider
 Products  Moulded case breaker
 Model  NSX MCCB
 Series  Merlin Gerin Compact NSX
 Description  circuit breaker Compact NSX160N - 160 A - 3 poles - without trip unit
 Condition  Schneider original new
 Lead time  1 week
